If the remote PC has multiple (dual) monitors, selecting different screens or displaying all monitors on a single screen is enabled. Follow the instructions to configure the display settings for dual monitors.



*For Remote Control

1. From the top menu, click Screen > Select Display

Or, click the switch monitor icon at the top right of the Viewer.



2. Select View all displays to view all monitors on a single screen.



- Multiviewer Setup

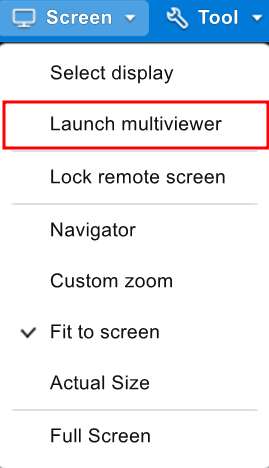

1. From the top menu, click Screen > Launch Multiviewer

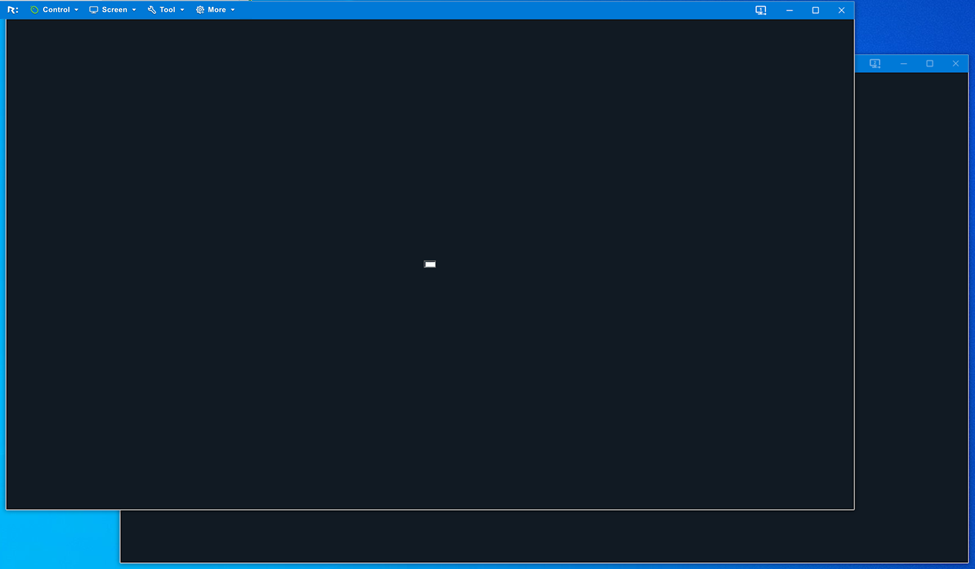

2. For dual monitors, two screens will be displayed as below

*When the ‘Save viewer information’ option is enabled, the size and position of each Viewer window will appear in the same state.

To set, go to the top menu, click R: > Configuration > General > Applications > Enable ‘Save viewer information’ option



*For Video Mode Control

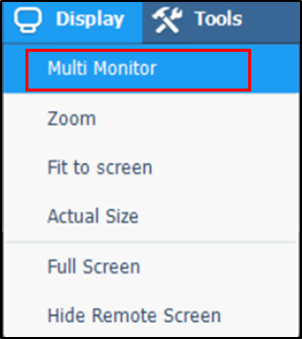

1. From the top menu, click Screen > Multi-Monitor

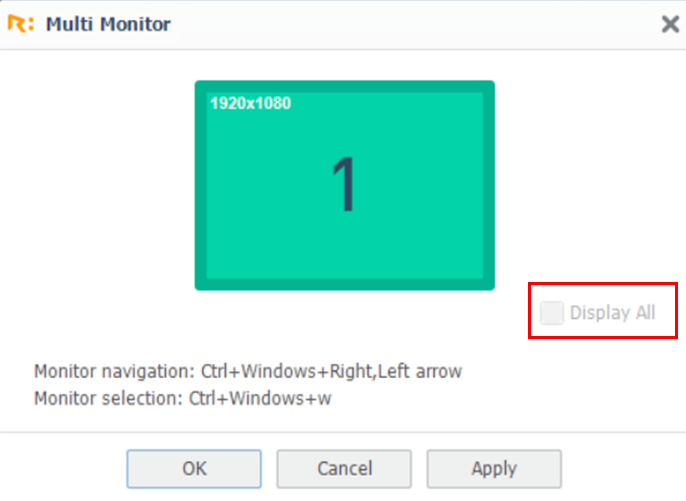

2. Untick Display All > Select the desired screen to view > Click OK



Displaying all screens is not available for WebViewer. To use this feature, connect via Remote Control or Video Mode Control.

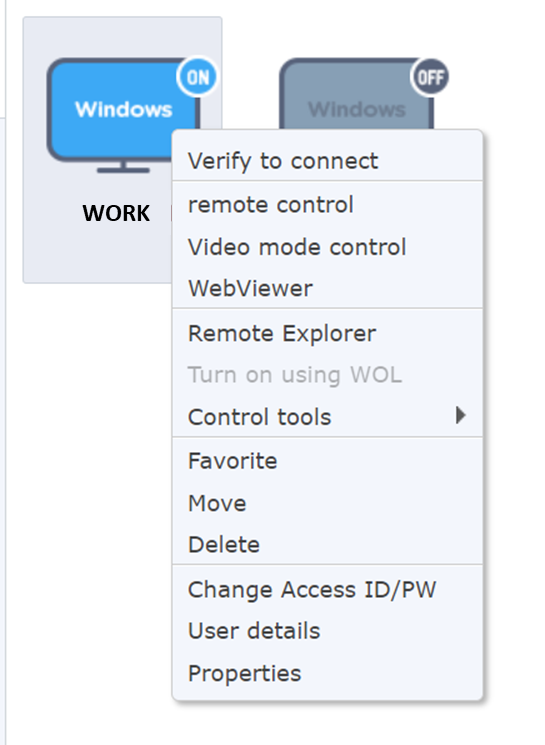

Right-click on the remote PC > Select Remote Control or Video Mode Control
